SPARTUS®
ARC 210E
TINY, PORTABLE MMA INVERTER.
The price includes standard equipment:
Technical parameters
| Input | ~1 × 230V ± 10% 50 / 60 Hz |
| Welding Current [A] | 20 – 200 |
| Duty cycle [%] | 60 |
| No-load voltage [V] | 69 |
| Arc Force adjustment |  |
| OTHER | |
| Current consumpiton [A] | 42 |
| Power factor (cosφ) | 0,93 |
| Efficiency η [%] | 85 |
| Insulation class | F |
| Protection class | IP21 |
| Weight [kg] | 4,6 |
| Dimensions [mm] | 299 × 127 × 196 |
Description:

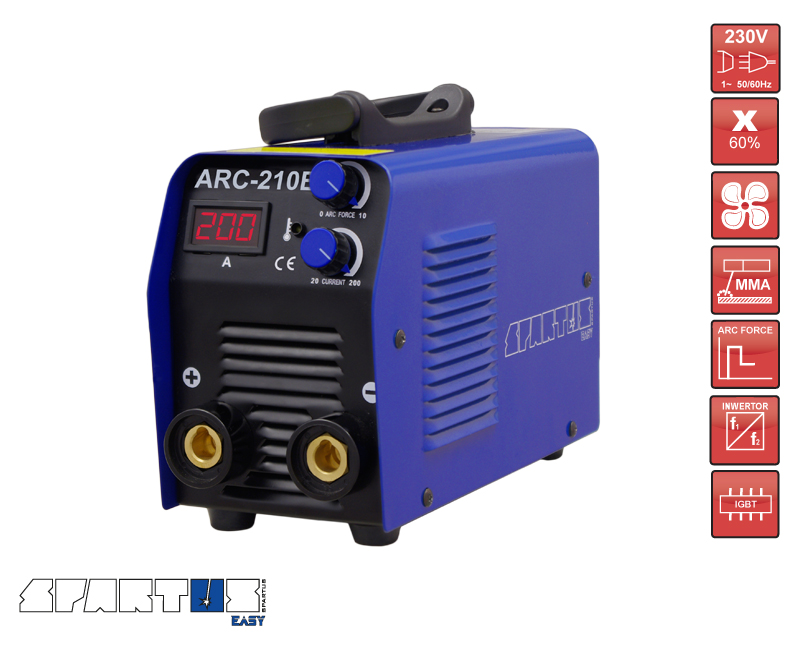

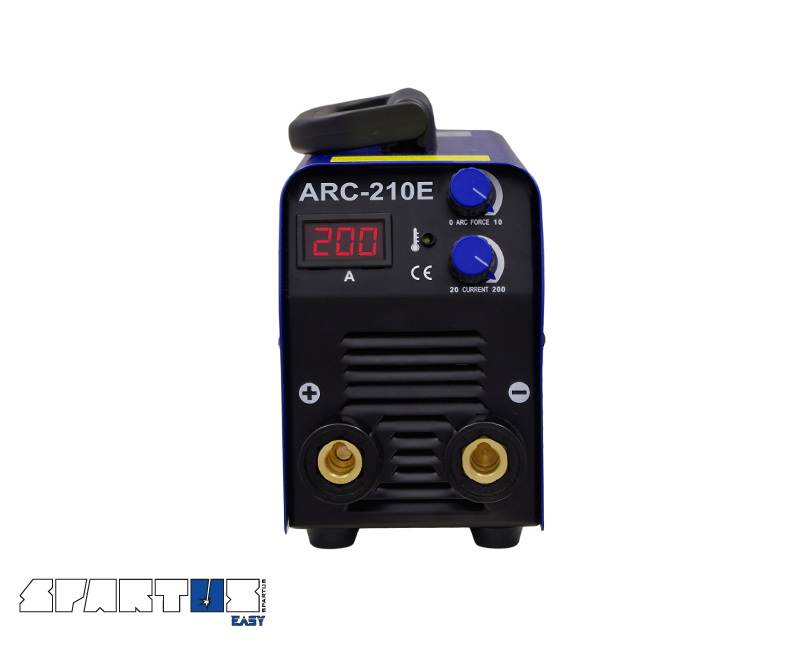

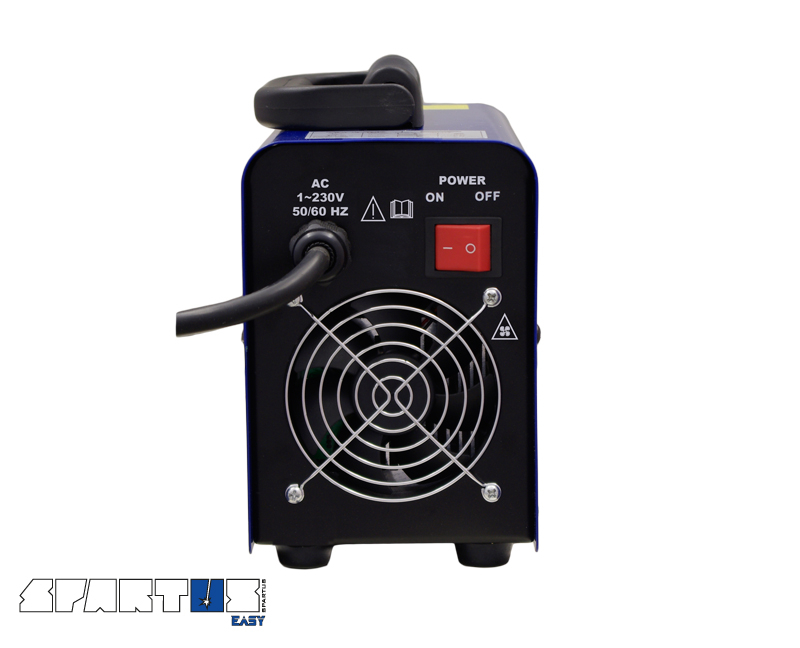

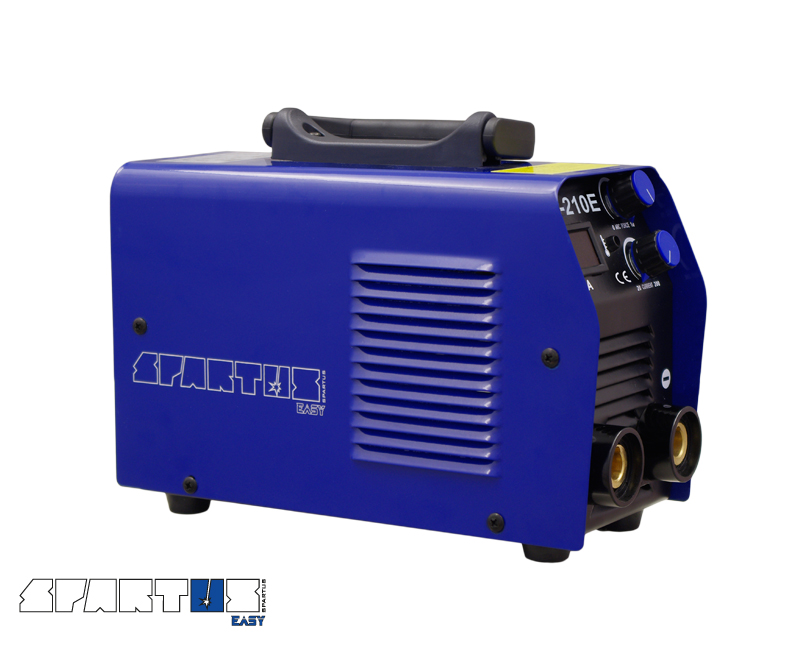

SPARTUS Easy ARC210E. This tiny stick welder is based on inverter technology. It is powered from single phase 230V source power.
The welding current is in the range between 10 to 200 amps. It has power enough required for welding electrodes diameter up to 4,0 mm. Welder is equipped with adjusting knob of welding current and Arc Force value. Integral digital display allows to precise control of welding parameters.
Welder with accessories, can easily fit in a handy suitcase which is included.
Examples of use: hobby, farm, portable repair, light workshop.

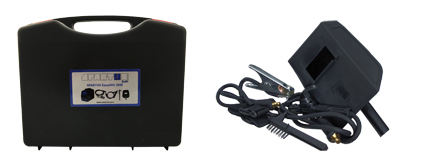

Equipment:
Electrode holder
Work clamp
Suitcase
Shield
Hammer with a brush
Shoulder strap
User’s manual (polish and english version).
Package price [EUR]:
