SPARTUS®
EasyMIG 125
LIGHT MIG FOR WELDING WITHOUT GAS SHIELD
Technical parameters
| Input | ~1× 230V ± 10% 50 / 60 Hz |
| Welding current MIG [A] | 40 – 100 |
| Duty cycle MIG [%] | 30 |
| MIG PARAMETERS | |
| Output working voltage MIG [V] | 15,6 |
| Wire feeder | builid-in, 2 - roll gear |
| Wire diameter Ø [mm] | 0.8 |
| Welding wire spool [mm] | ≤ 1[kg], Ø100 |
| OTHER | |
| Max. current consumpiton 230V [A] | 19.6 |
| Power factor (cosφ) | 0,58 |
| Insulation class | F |
| Protection class | IP21S |
| Weight [kg] | 5,8 |
| Dimensions [mm] | 410 × 150 × 285 |

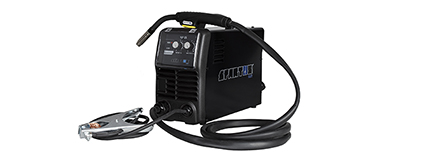

Description:
SPARTUS® EasyMIG 125 a small welding semi-automatic device, based on IGBT transistors. Enables
an cored wire
welding (FCAW).
Maximum welding current 100A. The unit is powered from a single-phase network 230V.
Semi-automatic EasyMIG 125 machine has automatic protection functions with intelligent to
over-voltage, over-current and over-heat. If any of the above problems occures, the alarm lamp
on the front panel will light and output current will be automatically turned off to protect and
extend the equipment using life.
Device is equipped with a two-roll welding wire feeder and 1kg/100mm holder spool. MIG
welding torch and the earth clamp are permanently installed.
SPARTUS® EasyMIG 125 will work both outdoors and in the field thanks to its small dimensions
and the possibility of welding with a self-shielding wire without gas.
Exemplary applications: workshop works, outside site repairs, automotive.
Package equipment:
EasyMIG 125 device
MIG gun SPE 150
Work clamp
User’s manual
Package price [EUR]:
