SPARTUS®
EasyMIG 220E Pulse
A modern, synergistic MIG with pulse current welding function
Technical parameters
| Input | ~1× 230V ± 10% 50 / 60 Hz |
| Welding current MIG [A] | 20 – 200 |
| Duty cycle MIG [%] | 60 |
| MIG PARAMETERS | |
| Output working voltage MIG [V] | 15 - 24 |
| Wire feeder | builid-in, 2 - roll gear |
| Wire feeding speed [m/min] | 2 - 16 |
| Welding wire spool [mm] | ≤ 5[kg], Ø200 |
| Wire diameter Ø [mm] | 0.6 / 0.8 / 1.0 |
| 2T/4T switch |  |
| Inductance control | |
| Synergistic program | |
| Spot welding | |
| Synergy | |
| TIG PARAMETERS | |
| Welding current TIG [A] | 20 – 200 |
| Arc ignition | Lift |
| Gas test | |
| MMA PARAMETERS | |
| Welding current MMA [A] | 20 – 200 |
| Welding with a coated electrode | |
| OTHER | |
| Max. current consumpiton [A] | 32.5 |
| Power factor (cosφ) | 0,85 |
| Efficiency η [%] | 85 |
| Insulation class | H |
| Protection class | IP23 |
| Weight [kg] | 19 |
| Dimensions [mm] | 540 × 470 × 245 |
| Network security (fuse) [A] | 25c |
Description:
SPARTUS® EasyMIG 220E PULSE is a modern, inverter welding semi-automatic device. It enables welding with three welding methods: a consumable electrode shielded by inert or active gases (MIG/MAG), a coated electrode (MMA) and non-consumable electrode shielded by inert gas TIG Lift (start arc ignition by scratching). In addition, the device thanks to the ability to change the polarity of welding, enables welding with self-shielding wire without gas. The maximum welding current for all methods is 200A. The unit is powered from single-phase network 230V.
SPARTUS® EasyMIG 220E PULSE is equipped with synergistic programs for MIG / MAG dedicated for welding steel alloys, stainless and acid-resistant steels as well as aluminum. It has a program to welding with self-shielding wire. All parameters are adjusted using an easy to use and intuitive control panel function. Constant output parameters are guaranteed by the use of modern technologies and a high quality wire feeder. The device uses technologically advanced MIG / MAG functions:
• welding inductance adjustment
• possibility to choose one of two operating modes 2T/4T
• SPOT welding

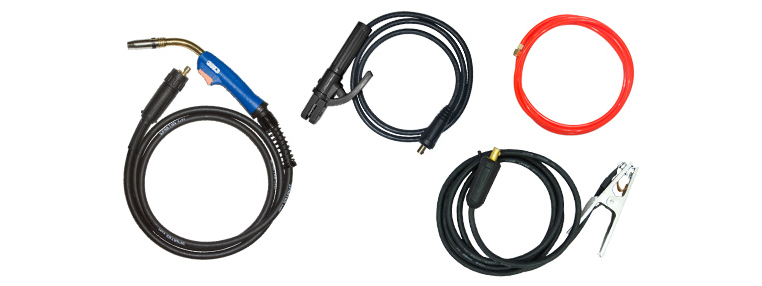

SPARTUS® EasyMIG 220E Pulse package:
Device SPARTUS® EasyMIG 220E Pulse
MIG gun SPARTUS® SPE 240 3m
(*equipped with a graphite insert)
Electrode holder
Work Clamp
Gas hose
User's manual
