EasyMIG 320


1 / 6

Technical parameters

Input 3× 400V ± 10% 50 / 60 Hz
Welding current MIG [A] 50 – 300
Duty cycle [%] 60
Output working voltage MIG [V] 16,5 – 29
Wire feeding speed [m/min] 2 – 18
Wire feeder built-in, 4-roll gear
Welding wire spool[kg]/[mm] ≤ 15 / ∅200 / ∅300
Wire diameter ∅ [mm] 0.8 / 1.0 / 1.2
2T/4T Control tak
TIG Lift tak
Welding current TIG [A] 10 – 300
MMA welding mode tak
Welding current MMA [A] 10 – 250
Hot Start tak
Arc Force tak
Wire test tak
Change polarity tak
Current consumption [A] 17
Insulation class F
SProtection class IP21s
Weight [kg] 38
Dimensions [mm] 920 × 420 × 740
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

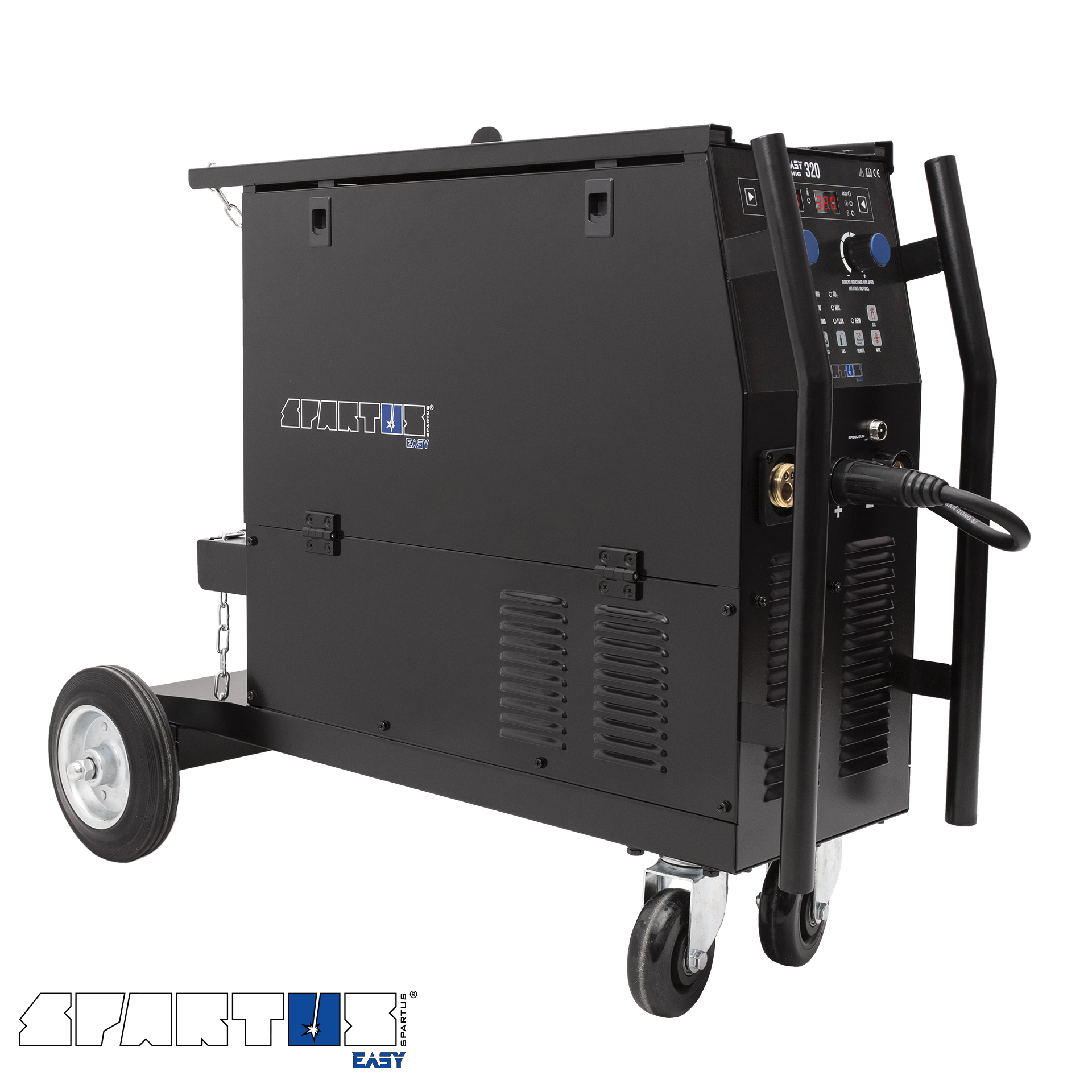

SPARTUS® EasyMIG 320 is modern, inverter and professional MIG/MAG welding machine with inert or active gas shielding and MMA coated electrode welding. SPARTUS® EasyMIG 320 is powered by 400V three-phase.

The maximum welding current for SPARTUS® EasyMIG 320 is 300A for MIG/MAG and 250A for MMA. 60% high working cycle ensures stable output parameters during long-term welding work.

SPARTUS® EasyMIG 320 is equipped in the synergy system for MIG/MAG welding with the ability to manually change parameters. You can choose the following programs: CO2 steel, mixed steel, core wire welding. Making the synergy correction is signalled by flashing LED on the device's panel.

SPARTUS® EasyMIG 320 has a set of features supporting the welding process: 2T/4T work mode, inductance regulation, Arc Force, Hot Start and VRD.

Professional four-roller feeder ensures stable welding wire feed. Resistant, robust and compact design makes it perfect equipment for difficult conditions, and there is a possibility of mounting a technical gas cylinder on the chassis of the device.

SPARTUS® EasyMIG 320 is a compact device designed mostly for efficient welding of steel constructions and working in difficult workshop conditions.

SPARTUS® EasyMIG 320 package:

Device SPARTUS® EasyMIG 320

MIG gun SPARTUS® SPE 360 3m

Additionally 2 x wire guide roller 1.0-1.2V fi30

Electrode holder

Work clamp

Gas hose

User's manual

Package price [EUR]:
