TIG 200P AC/DC
PROFESSIONAL, ALL-ROUNDER TIG AC/DC. DESIGNED FOR WELDING ALUMINUM AND STAINLESS STEELS.
Technical parameters
| Input | ~1× 230V ± 10% 50 / 60 Hz |
| Welding Current TIG [A] | 10 – 200 |
| Duty cycle [%] | 60 |
| TIG PARAMETERS | |
| Start Amps, End Amps |  |
| Gas pre flow [s] | 0 – 2 |
| Up slope [s] | 0 – 10 |
| Down slope [s] | 0 – 10 |
| Gas post flow [s] | 0 – 10 |
| TIG PULSE mode | |
| Pulse Amps [A] | 10 – 200 |
| Base Amps [A] | 10 – 200 |
| Pulse Width [%] | 10 – 90 |
| Pulse frequency [Hz] | 0,5 – 200 |
| AC frequency [Hz] | 20 – 100 |
| AC balance [%] | 10 – 90 |
| 2T/4T Control | |
| Arc ignition | HF |
| Output remote control | |
| MMA PARAMETERS | |
| MMA welding mode | |
| Welding current MMA [A] | 10 – 180 |
| Arc Force range [A] | 0 – 50 |
| No-load voltage [V] | 62 |
| OTHER | |
| Current consumpiton [A] | 20 |
| Power factor (cosφ) | 0,93 |
| Efficiency η [%] | 85 |
| Insulation class | F |
| Protection class | IP23 |
| Weight [kg] | 30 |
| Dimensions [mm] | 620 × 360 × 400 |
Description:
Modern and professional SPARTUS Master TIG200P AC/DC. Allows gas tungsten arc welding (TIG, GTAW) and manual metal arc welding (SMAW, MMA). Maximum welding current is 200A with high duty cycle 60%. Device is powered from single-phase 230V source power.

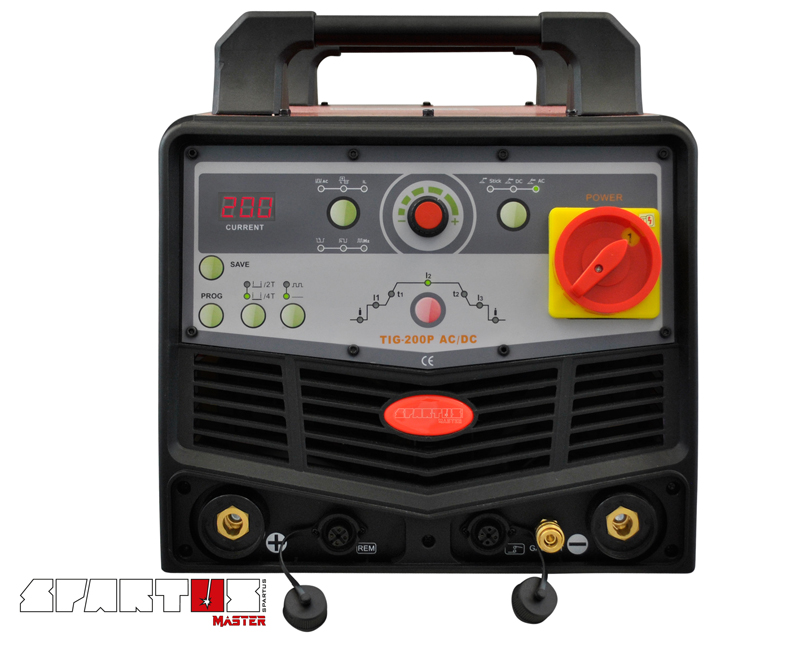

The device is equipped with an easy-to-use digital control panel that allows precise control of all important welding parameters. The ability to save your settings in device memory, ensure adequate repeatability and high performance welding work. TIG 200P AC/DC is ready to work with tig torch with remote controlling in grip.
TIG AC welding with adjustable AC balance and AC frequency allows you to weld even the most demanding of aluminum alloys. TIG DC Pulse welding is essential for welding stainless and acid-resistant steels.
Examples of use: industrial, portable repair, workshop, maintenance, constructions.
Standard equipment:
3 meter work clamp
Gas hose
User’s manual
Package equipment:
3 meter electrode holder
3 meter work clamp
Gas hose
Gas regulator SPARTUS Ar/CO2 with flowmeter
TIG torch SPARTUS Master 26 4m
User’s manual
