Extension cord for compressed air WT

Home page

Pneumatic

Compressed air extension cords WT

1 / 3

DESCRIPTION	CODE	∅ inner	MAX. OPERATING PREASSURE	LENGHT	EUR / PCS
Extension cord WT8x10m	PR08-10-T26	8 mm	20 bar	10 m
Extension cord WT8x15m	PR08-15-T26	8 mm	20 bar	15 m
Extension cord WT10x10m	PR10-10-T26	10 mm	20 bar	10 m
Extension cord WT10x15m	PR10-15-T26	10 mm	20 bar	15 m

Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Opis:

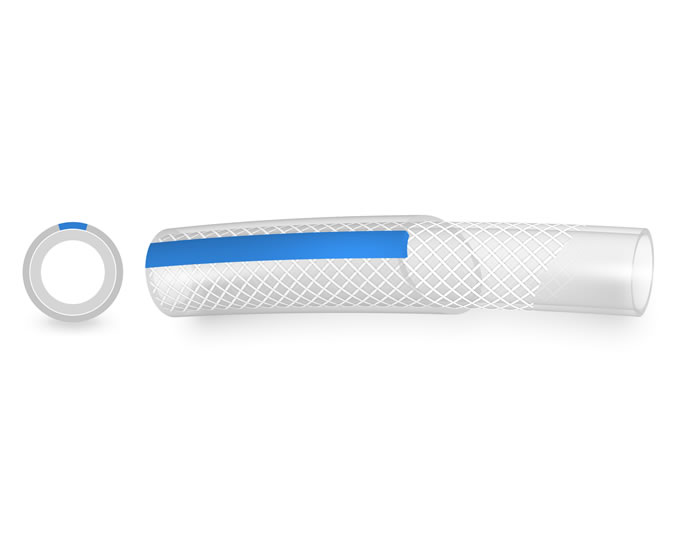

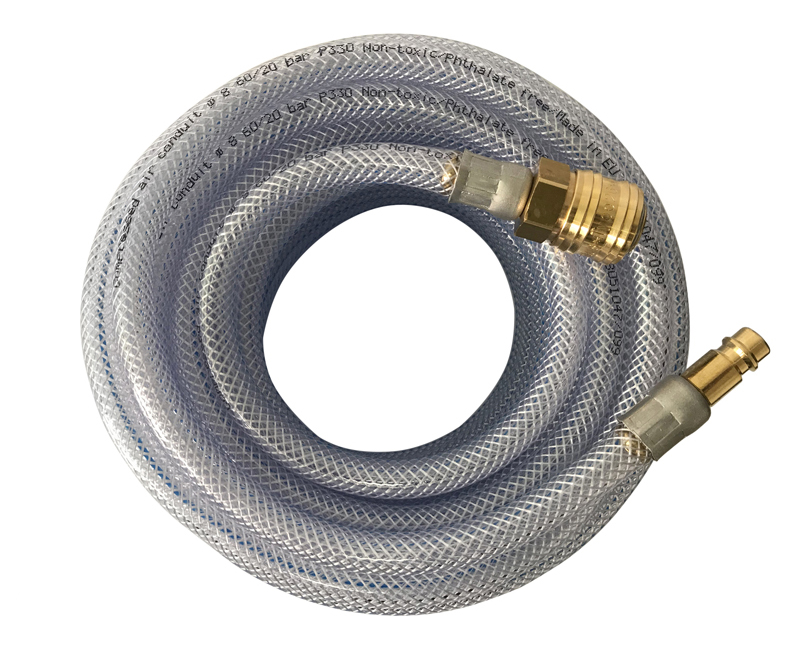

Flexible extension cords for compressed air made of PVC duct with additional textile reinforcement (stylon). Working pressure 20 bar (1 MPa) in the temperature range -40°C to +70°C. Bursting pressure > 40 bar (4 MPa).

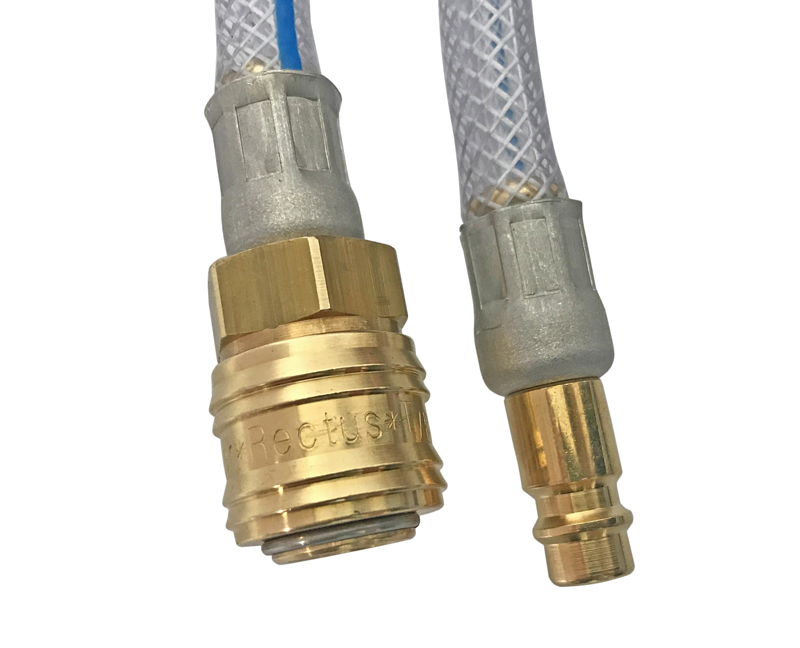

Extension cords are original Rectus type 26 quick connectors (DN 7.2).
