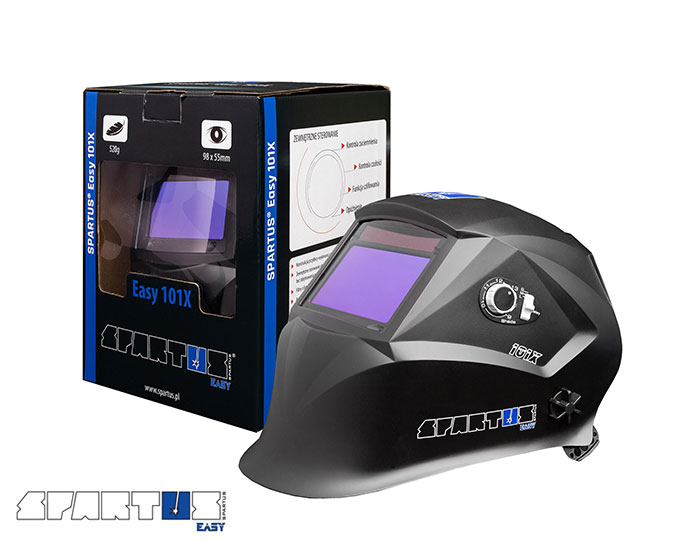

Auto darkening welding helmet SPARTUS® Easy 101X

1 / 6

Technical parameters

Application Arc welding: MMA, TIG, MIG/MAG
Cartridge size 110 x 90 x 9 mm
Active field of view 98 x 55 mm
Sensors 4
Filter optical class 1/1/1/2
Shading (standby) DIN 4
Variable welding shades (operating) DIN 9 - 13
UV/IR protection degree to DIN 16
Light to dark switching time1/25 000 s
Delay control light to dark switching time 0.25 - 0.8s
Powered solar cells, battery
Adjustment knoband switch out-side
Grinding tak
Weight 520g
Helmet SPARTUS® Easy 101X080-10-101
External polycarbonate shield 123 x 98mm082-123-098
Internal policarbonate shield 58 x 107mm082-58-107


The SPARTUS® Easy 101X automatic welding helmet is designed to protect the welder's eyes and face from harmful radiation and welding spatters. It is perfect for MIG / MAG, TIG and MMA welding. It also has a grinding option.

The automatic, high efficient filter protects the welder's eyes against harmful UV&IR radiation. After the arc ignition, this filter will switch from its natural light state to the darkened shade. After welding stops, it backs to normal immediately, according to the delay time set before. Fast lens reaction time - 1/25,000s is guaranteed thanks to the use of 4 very sensitive sensors.

The external control makes it easy to set the filter parameters during operation without removing the helmet.Thanks to them we can control the level of darkness (DIN 9-13), sensitivity, delay time and switch the operating mode to grinding.

The Easy 101X welding helmet is made of a durable and lightweight material. The multi-stage adjustment of the headgear allows to set the distance from filter to the welder's eyes, significantly increases the comfort of work and reduces the fatigue.

Helmet SPARTUS Easy 101X with hard hat:

Health and safety regulations require in many situations using of a protective helmet to cover the operator's head from injuries.
The situations include for example: the works on bridges, on steel constructions, in large tanks as well as renovation and assembly works with boilers and their installations.
Welding protection helmet SPARTUS Easy 101X is connected via a special adapter with hard hat. It provides increased protection of the welder from dangerous potential consequences of head injuries and ensures high comfort during long hours of use.
Person, who uses protecting welding helmet with hard hat, meets stringent health and safety requirements in the workplace.

Welding helmet SPARTUS Easy 101X with hard hat080-10-101Kcena
