EasyMIG210LED

SPARTUS®
EasyMIG 210LED



SMALL AND SIMPLE SYNERGIC INVERTER WELDING MACHINE

1 / 6

Technical parameters

Input ~1× 230V ± 10% 50 / 60 Hz
Welding current MIG [A] 50 – 200
Duty cycle MIG [%] 60
MIG PARAMETERS
Output working voltage MIG [V] 16,5 – 24
Wire feeding speed [m/min] 2 – 12,5
Wire feeder builid-in, 2 - roll gear
Welding wire spool [mm] ≤ 5[kg], Ø200
Wire diameter Ø [mm] 0.6 / 0.8 / 1.0
2T/4T switch tak
Inductance control tak
Wire test tak
Synergy tak
Manual correction to synergy tak
MIG/MAG polarization change tak
TIG PARAMETERS
TIG welding tak
Welding current TIG [A] 10 – 200
Duty cycle TIG [%] 60
MMA PARAMETERS
MMA welding tak
Welding current MMA [A] 10 – 160
Hot Start tak
Arc Force tak
VRD tak
Duty cycle MMA [%] 60
OTHER
Max. current consumpiton [A] MIG 39 / TIG 29 / MMA 34
Power factor (cosφ) 0,73
Efficiency η [%] 77
Insulation class H
Protection class IP21S
Weight [kg] 10
Dimensions [mm] 470 × 190 × 330
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

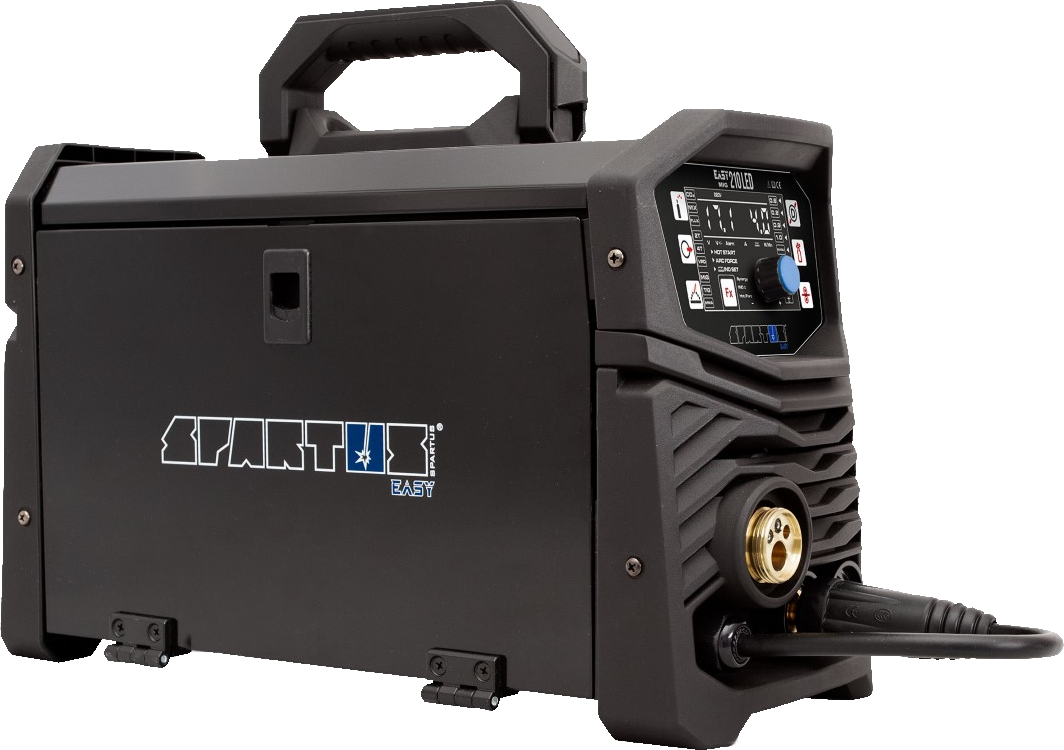

EasyMIG 210LED – A SMALL AND SIMPLE SYNERGIC INVERTER WELDING MACHINE
SPARTUS® EasyMIG 210LED is a small semi-automatic welding machine made of inverter technology using IGBTs. Enables welding methods: MIG/MAG, TIG Lift current up to 200A and MMA to 160A. It is powered from single phase 230V source power.

A PORTABLE INVERTER WELDING MACHINE FOR EVERYONE
EasyMIG 210LED 210LED is an intuitive welding device characterized by simplicity that novice welders will certainly appreciate. Thanks to its low weight and compact design, it is perfect as a portable semi-automatic welding machine. Any maintenance work in the field is the perfect job for this machine.

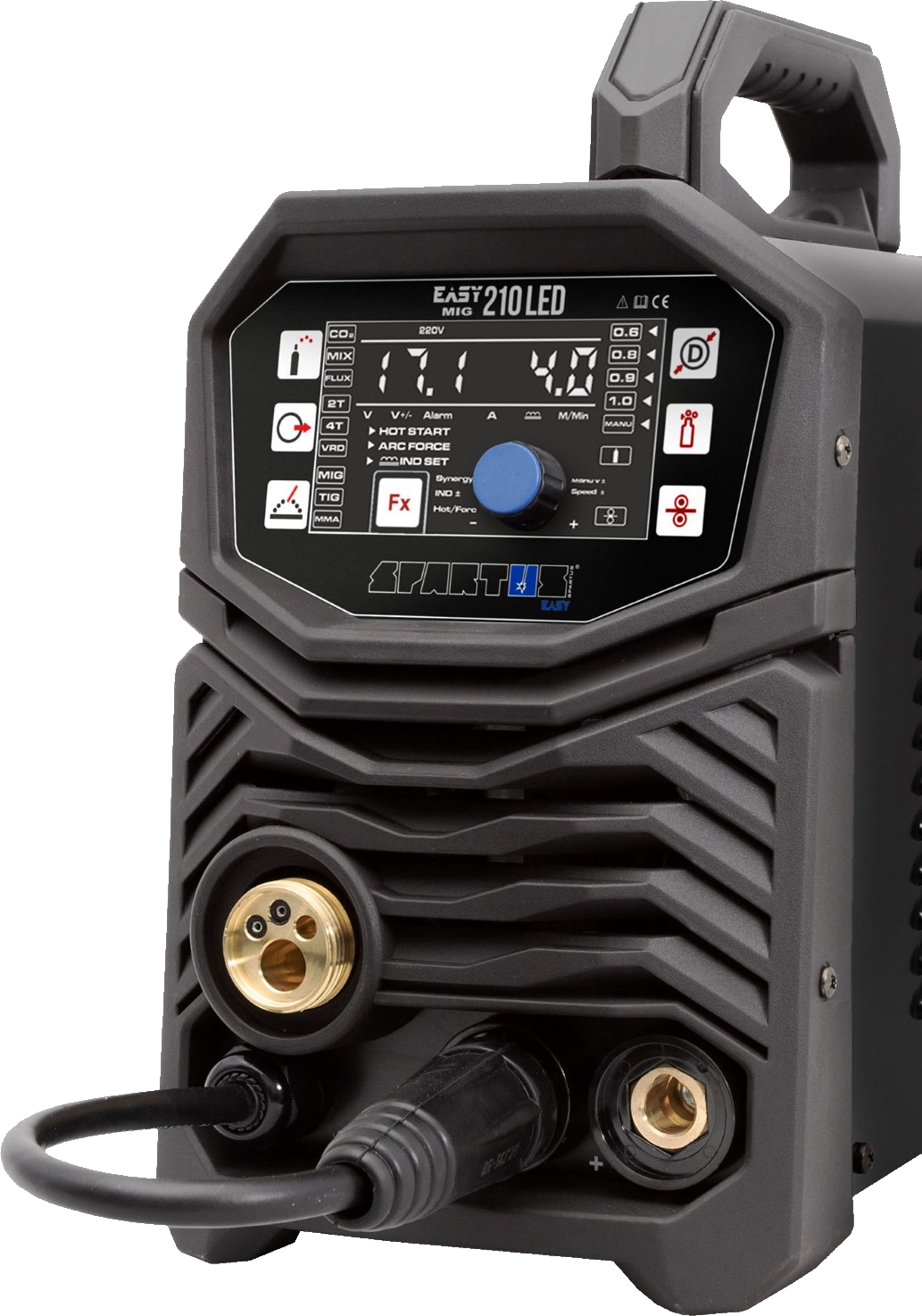

A simple and intuitive LED display allows you to easily manage the parameters of the welding machine.

3 WELDING METHODS IN ONE MACHINE
MIG SYNERGY
SPARTUS® EasyMIG210LED is equipped with synergistic programs for MIG / MAG welding with steel wires in the range diameter 0,6 / 0,8 / 1,0 mm. In addition, the machine has an ability to manually adjust set parameters. Other parameters will be adjusted by the device automatically.

more ....

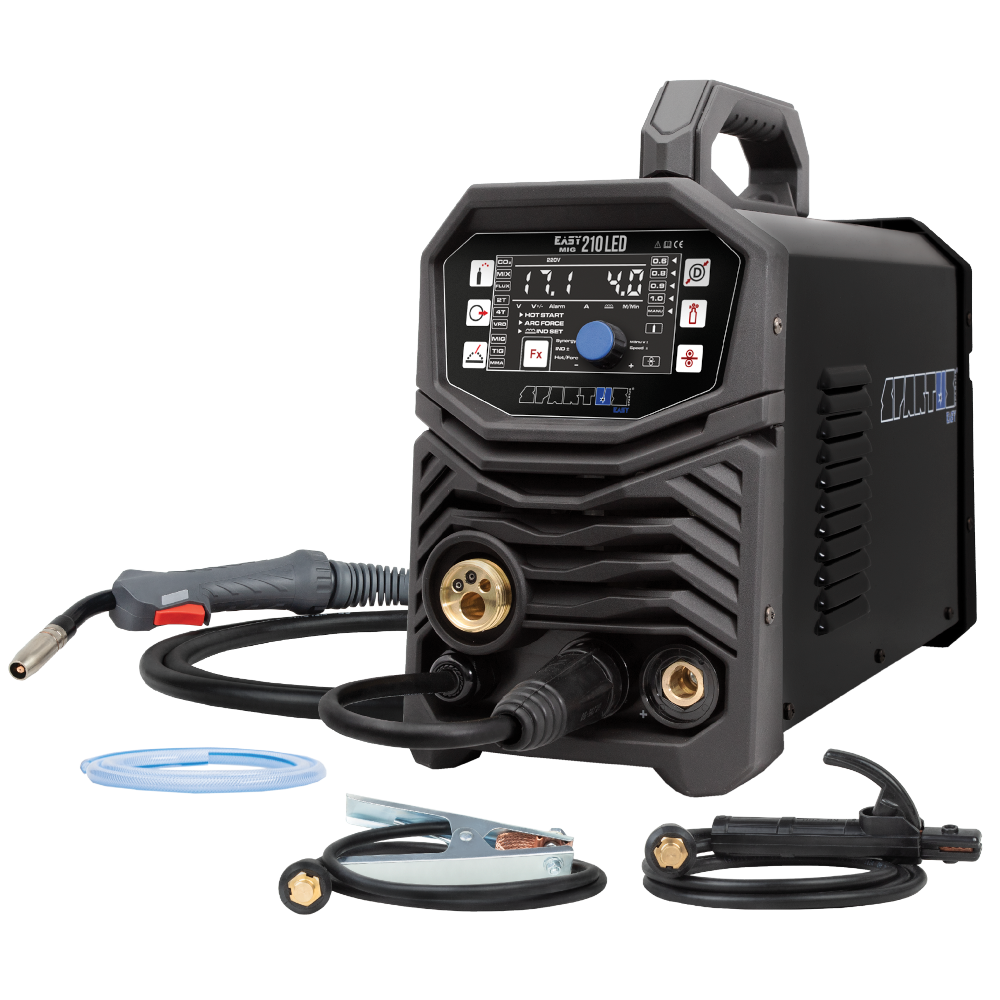

Package equipment:

EasyMIG 210LED device

MIG gun SPARTUS® SPE 150 3m

weire guide roller 0.8 - 1.0V fi30

electrode holder

work clamp

gas hose with bands

user’s manual

Package price [EUR]:
cena
