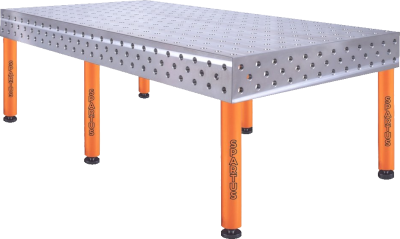

Welding table SPARTUS®
FERROS 3D 2000 x 1000 x 200

1 / 20

Technical parameters

Size of the work surface [mm] 2000 x 1000 x 200
Made casted
Material EN-GJL-300 cast iron acc. to EN 1561
Table top thickness [mm] 25
Table horizontal precision [mm] 0.1/1000
Table vertical precision [mm] 0.1/200
Standard D28
(drilled and milled holes 28mm diameter)
Carrying capacity [kg/leg] 2000
Number of legs [pcs.] 6
Type of leg with foot / with a wheel
Possibility of leveling tak
Table top weight [kg] 720


download calatog Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

CODE DESCRIPTION TOTAL TABLE HEIGHT LEG HEIGHT (L)
SP28C-20-10-200 FERROS 3D 2000 x 1000 x 200 [6 legs] 450mm 200mm
SP28C-20-10-350 FERROS 3D 2000 x 1000 x 200 [6 legs] 600mm 350mm
SP28C-20-10-450 FERROS 3D 2000 x 1000 x 200 [6 legs] 700mm 450mm
SP28C-20-10-550 FERROS 3D 2000 x 1000 x 200 [6 legs] 800mm 550mm
SP28C-20-10-620 FERROS 3D 2000 x 1000 x 200 [6 legs] 870mm 620mm
foot adjustment max + 5cm

CODE DESCRIPTION TOTAL TABLE HEIGHT LEG HEIGHT (L)
SP28C-20-10-200M FERROS 3D 2000 x 1000 x 200 [6 legs] 450mm 200mm
SP28C-20-10-350M FERROS 3D 2000 x 1000 x 200 [6 legs] 600mm 350mm
SP28C-20-10-450M FERROS 3D 2000 x 1000 x 200 [6 legs] 700mm 450mm
SP28C-20-10-550M FERROS 3D 2000 x 1000 x 200 [6 legs] 800mm 550mm
SP28C-20-10-620M FERROS 3D 2000 x 1000 x 200 [6 legs] 870mm 620mm
